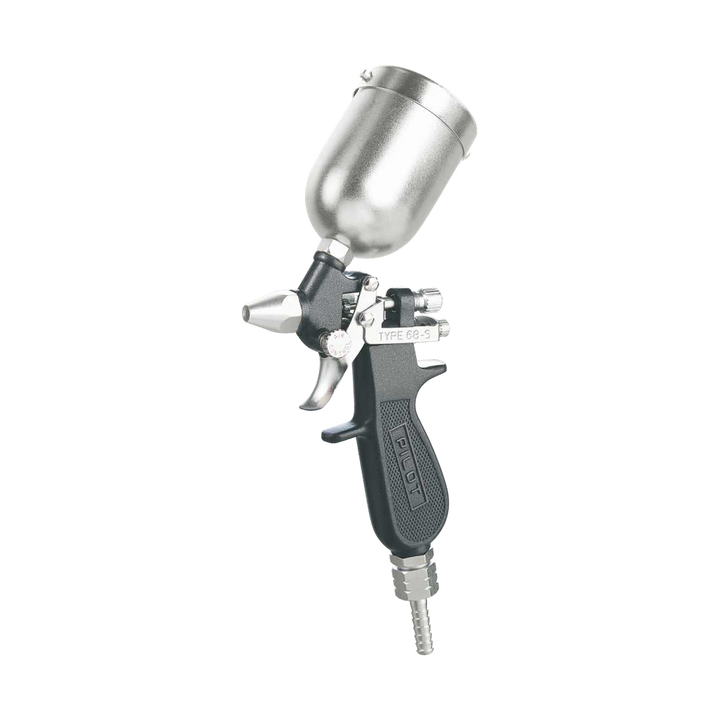

Pilot Type 68 with SS Top Feed cup (0.14 litre)
Features
- Permits fine shading and blending
- Accurate, easy trigger control
- Ideal for touch-ups, small parts and detail work
Technical Data
| Code No. | 68000S |
| Cup capacity (litres) | 0.14 (stainless steel) |
| Feed | Gravity (top cup) |
| Gun distance from work piece mm (inch) | 228.6 (9) |
| Fluid nozzle orifice dia. (mm) | 1.0 |
| Required pressure (kg/sq.cm) | 1 – 2.5 |
| Air consumption at rated pressure lit/min (c.f.m) | 55 – 115 (2 – 4) |
| Material output (cc/min) | 85 |
| Max. pattern width (mm) | 100 |
| Min. air compressor (HP) | 1 |
| Weight of gun with cup (g) | 395 |
%0A0.14%20(stainless%20st...
){kind=link}
Pilot Type 68 with SS Top Feed cup (0.14 litre)
Sale priceRs. 2,015.00 INR
Regular priceRs. 2,075.00 INR
Pilot 68
Where this gun fits.
A quick way to place this model in the Pilot range. For full specifications, applications and product details, use the description above.
Best suited toPrecision detailing, shading & fine work
Format0.8 mm nozzle · fine pattern control
Choosing between models?Tell us the job, material and compressor
AvailabilityStocked in Pune · supply across India
Need a price?
Tell us the quantity and city. If you’re buying for resale, select it in the enquiry and add your firm name.
