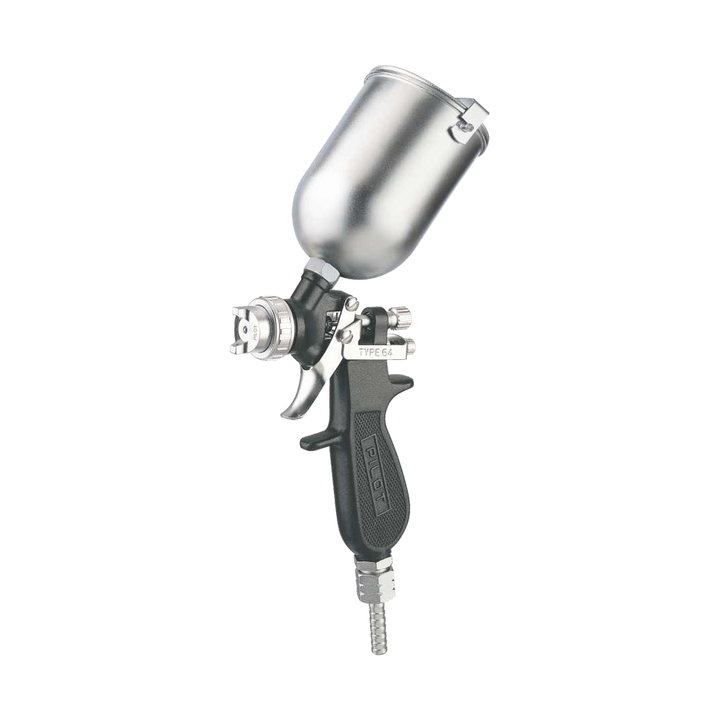

Pilot Type 64 with SS Top Feed Cup (0.34 litre)
Features
- Lightweight gravity feed spray gun
- Flexible air cap: spray from round concentrated to fan pattern
Technical Data
| Code No. | 64000S |
| Cup capacity (litres) | 0.34 (stainless steel) |
| Feed | Gravity (top cup) |
| Gun distance from work piece mm (inch) | 228.6 (9) |
| Fluid nozzle orifice dia. (mm) | 1.6 |
| Required pressure (kg/sq.cm) | 2.1 – 2.8 |
| Air consumption at rated pressure lit/min (c.f.m) | 115 – 170 (4 – 6) |
| Material output (cc/min) | 300 |
| Max. pattern width (mm) | 180 |
| Min. air compressor (HP) | 1 |
| Weight of gun with cup (g) | 485 |
%0A0.34%20(stainless%20steel)%0A%0A%0AFeed%0AGrav...
){kind=link}
Pilot Type 64 with SS Top Feed Cup (0.34 litre)
Sale priceRs. 2,440.00 INR
Regular priceRs. 2,515.00 INR
Pilot 64
Where this gun fits.
A quick way to place this model in the Pilot range. For full specifications, applications and product details, use the description above.
Best suited toFurniture & wood finishing
Format1.6 mm nozzle · compact gravity feed
Choosing between models?Tell us the job, material and compressor
AvailabilityStocked in Pune · supply across India
